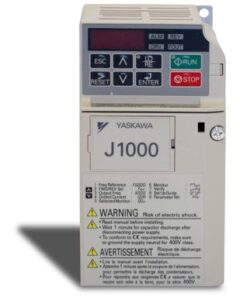

J1000 Compact V/F Control Drives

J1000-Compact V/F Control Drives

Ratings:

1 Phase 200VAC, 0.2kW to 2.2kW

3 Phase 200VAC, 0.2kW to 5.5kW

3 Phase 400VAC, 0.4kW to 5.5kW

The J1000 is a world-class compact variable frequency drive that defines a new world standard. Demands for efficient production and better maintainability are on the rise, spurred by global competition. Yaskawa drives have earned a reputation for high performance, high functionality, and high quality.

Great things come in small packages!

Key Features

  • V/f control
  • RoHS compliance
  • Dual rating: Normal Duty and Heavy Duty
  • Starting torque of 150% at 3 Hz
  • Side-by-side installation due to patented hybrid heatsink
  • Preferred parameter feature
  • One-touch copy function with verify with 5-digit LED keypad
  • Increased vibration resistance, from 20 Hz to 50 Hz (0.65G)
  • 1 in 10,000 failure rate
  • Swing PWM function to decrease noise at low carrier frequencies
  • Pre-maintenance function
  • Modbus communication
  • Reduction in mechanical parts to increase MTBF
  • Cooling fan replacement without tools
  • MTBF: 28 years
  • Short Circuit Current Rating (SCCR): 30kA rms symmetrical
  • Built-in dynamic braking transistor
  • Common programming with all other Yaskawa drives

Application / Industry

  • Fan
  • Pump
  • Overhead shutter
  • Conveyor
  • Mixers
  • Food & Beverage Machinery
  • Shutter door – Open/close
  • Agriculture Machineries
  • Commercial Machineries
  • For Healthcare Applications and Many more
